Datafiles Action Configuration¶
IMPORTANT: this file is deprecated as the datafiles actions are now implemented using configurable actions
This page describes how to configure the datafiles actions.
Datafiles actions are actions available to users when viewing the list of files associated to a dataset which can be viewed under the the Datafiles tab of the dataset details page.
These actions are shown as button between the page header and the table listing the files.
There are two properties in the frontend configuration structure that control the datafiles actions:
- datafilesActionsEnabled
Type: boolean
This property enables the action sfeature on the datafiles page. - datafilesActions
Type: array of ActionConfig
This property contains an array of action definition. Each element defines an individual action that is rendered as button. Each button can have a label or an icon or both. - maxDirectDownloadSize
Type: numeric
This property specify the maximum that total size of the files included in any datafiles action can reach. The quantity is expressed in bytes
The type ActionConfig define how the button triggring the action is rendered and what the action does.
The structure of ActionConfig is the following:
- id
Type: string
This is a unique id for this action. It does not have any effect on the rendering nor the action. It is included for traceability, management and debugging purposes. - order
Type: number
This property indicates the order in which this action will be rendered in comparison to the others. - label
Type: string
This property provides the label rendered in the button. If a label is not needed, leave it empty. - files
Type: string This property indicates which files should be submitted with the requested action.
Currently on the following two values are accepted: - all: all the files will be submitted with the action
- selected: only the selected files will be submitted with the action
- mat_icon
Type: string
Optional
If specified, this is the name of the mat icon that shouls be rendered in the button.
If it is not present, no mat icon is shown in the button. This icon takes precedence over the property icon explained next. - icon
Type: string
Optional
If specified, this is the relative path to the icon file to be shown in the related button. It is shown only if property mat_icon is not defined. If not present, no icon is shown. - url
Type: string
This specify the URL where the POST submission should be send. - target
Type: string Select what is the behaviour when the action is triggered, as if it should reload th epage, open a different tab or browser window.
For more information, pleae refer to the official HTML form documentation available at this URL: https://developer.mozilla.org/en-US/docs/Web/HTML/Element/form#target - method
Type: string
Optional
Default: POST
Underlying form submission method.
It is strongly suggested to leaving undefined and use the default which is POST. If the action uses a different one, please refer to the official HTML form documentation available at this URL https://developer.mozilla.org/en-US/docs/Web/HTML/Element/form#method - enabled
Type: string Optional
This property specify the condition when the action is enabled. It takes precedence over the following property disabled. It may can contains the following two keywords alone or combined in a logical expression. -
SizeLimit: true if the total size of the files that will be used in the action is less or equal to the size specified in the configuration property maxDirectDownloadSize¶
-
Selected: true if any file has been selected in the list.¶
- disabled
Type: string
Optional
This property specify when the action is disabled. It is used only if the property enabled is not define. Please check property enabled for the possible values. - authorization
Type: string[]
Optional IMPORTANT: This value is for future use and not yet implemented. The intented use is to be able to enable/disable the button based on the groups the user belongs to.
Behavior¶
When the action is triggered by a click on the rendered button, a call of the defined tpye, aka POST or GET, is submitted to the URL provided together with the appropriate list of files.
The action acts like a form submission with all the following arguments:
- target: as defined in the action
- method: as defined in the action or POST if not
- action: set as th eurl provided in the action and inputs:
- auth_token: user current token id
- jwt: a jwt token defined for the user
- dataset: dataset pid of the dataset shown
- directory: dataset source folder
- files[]: array of the selected files if action property files is set to selected, or all files if action property files is set to all
Examples¶
This example define the following 4 type of actions:
- Download All files
It renders a button with the download icon and label Download All. When clicked, the action will send a POST request to the url https://download.scicat.org with the list of all files associated with the dataset. It is enabled only when the total size is lower than the max size defined in configuration. - Download Selected Files
It renders a button with the download icon and label Download Selected. When clicked, the action will send a POST request to the url https://download.scicat.org with the list of the dataset's files selected by the user. It is enabled only when the total size is lower than the max size defined in configuration and at least one file is selected. - Create and download a notebook which load the dataset metadata and download locally all the files
It renders a button with the Jupyter icon and label Notebook All. When clicked, the action will send a POST request to the url https://notebook.scicat.org with the list of all the files associated with the dataset. It is always enabled. - Create and download a notebook which load the dataset metadata and download locally only the selected files.
It renders a button with the Jupyter icon and label Notebook Selected. When clicked, the action will send a POST request to the url https://notebook.scicat.org with the list of the dataset's files selected by the user. It is enabled only when at least one file is selected.
Configuration properties are set to the following values:
datafilesActionsEnabled = true
datafilesActions = [
{
id: "eed8efec-4354-11ef-a3b5-d75573a5d37f",
order: 4,
label: "Download All",
files: "all",
mat_icon: "download",
url: "https://download.scicat.org",
target: "_blank",
enabled: "#SizeLimit",
},
{
id: "3072fafc-4363-11ef-b9f9-ebf568222d26",
order: 3,
label: "Download Selected",
files: "selected",
mat_icon: "download",
url: "https://download.scicat.org",
target: "_blank",
enabled: "#Selected && #SizeLimit",
},
{
id: "4f974f0e-4364-11ef-9c63-03d19f813f4e",
order: 2,
label: "Notebook All",
files: "all",
icon: "/assets/icons/jupyter_logo.png",
url: "https://notebook.scicat.org",
target: "_blank",
},
{
id: "fa3ce6ee-482d-11ef-95e9-ff2c80dd50bd",
order: 1,
label: "Notebook Selected",
files: "selected",
icon: "/assets/icons/jupyter_logo.png",
url: "https://notebook.scicat.org",
target: "_blank",
enabled: "#Selected",
},
]

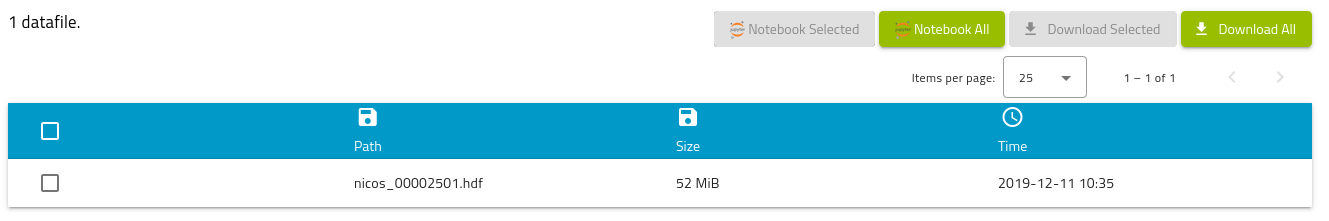

This configuration renders to the following buttons if no files are selected:
or in this other one when at least one file is selected:
Tests¶
The previous examples are the settings used for the associated unit tests with the addition of the following settings:
files = [
{
path: "file1",
size: 5000,
time: "2019-09-06T13:11:37.102Z",
chk: "string",
uid: "string",
gid: "string",
perm: "string",
selected: false,
hash: "",
},
{
path: "file2",
size: 10000,
time: "2019-09-06T13:11:37.102Z",
chk: "string",
uid: "string",
gid: "string",
perm: "string",
selected: false,
hash: "",
},
]
lowerMaxFileSizeLimit = 9999;
higherMaxFileSizeLimit = 20000;
There are three group of tests:
- testing enabling/disabling of the rendered buttons
- testing that action and related form submissions contains the correct files and urls
- testing that the buttons contain the correct label as specified in the configuration
